Name: FANUC M-10iA/7L , 7kg payload , 1633mm reach ,arc welding Loading and unloading of parts , Handling of parts , Assembly
Brand: Changsha Pengju Robot Co., Ltd.
SKU: FANUC M-10iA/7L
Price: 8,250.00 USD
Availability: InStock

Home > products > Palletizing Robot >

FANUC M-10iA/7L , 7kg payload , 1633mm reach ,arc welding Loading and unloading of parts , Handling of parts , Assembly

1633mm FANUC M-10iA/7L

7kg FANUC M-10iA/7L

arc welding FANUC M-10iA/7L

Place of Origin:

Japan

Brand Name:

FANUC

Model Number:

FANUC M-10iA/7L

Request A Quote

Product Details

Model:

FANUC M-10iA/7L

Payload:

7kg

Range:

1633mm

Payment & Shipping Terms

Minimum Order Quantity

1 PC

Price

8000USD-8500USD

Packaging Details

wooden packing

Delivery Time

7 days

Payment Terms

L/C, T/T

Supply Ability

50 PCS

6 Controlled Axes Palletizing Robot KR210 with Ethernet/IP Communication Protocol Used KUKA robot

Get Best Price

Video

KR210 Palletizing Robot with Used Kuka Robot and 2700 Mm Maximum Reach Industrial Robot Handling Palletizing Casting

Get Best Price

Video

Communication Protocol Enabled Robotic Palletizer for KUKA kr210 C4 handling robot

Get Best Price

Video

Used Kuka Palletizing Robot with Profinet Communication automatic palletizing handling loading robot

Get Best Price

+8618123897892

dai155129291@gmail.com

Contact Now

Product Description

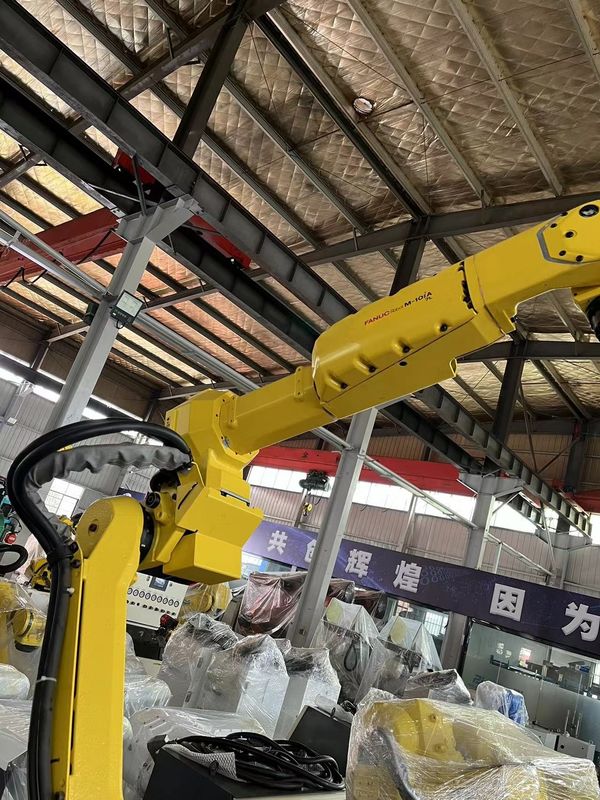

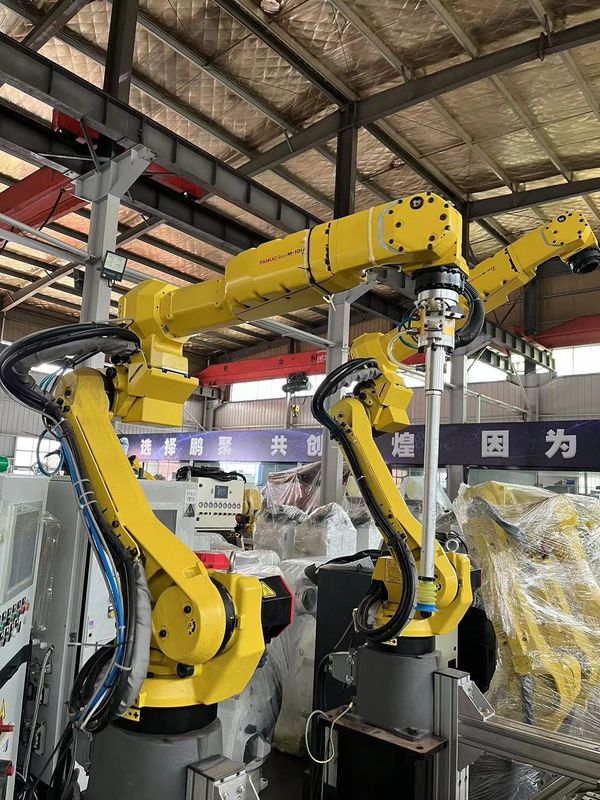

The Fanuc M-10 series, specialized in articulated robots for light load handling, has a thin, hollow wrist that offers greater work space, ease of integration into work cells, and internal wiring to avoid interference with other devices. Robot series provides improved cycle times, high performance and is ideal for applications of collection, pick and place and machine tending.

The M-10iA/7L industrial robot characterized by its thin arm design and wide reach, cost-effective hollow wrist with degree of protection IP67 makes this robot very versatile for applications of pick and place, manipulation of parts, assembly etc., provides a great saving of space due to its flexibility of mounting position in floor, ceiling, angle and wall.

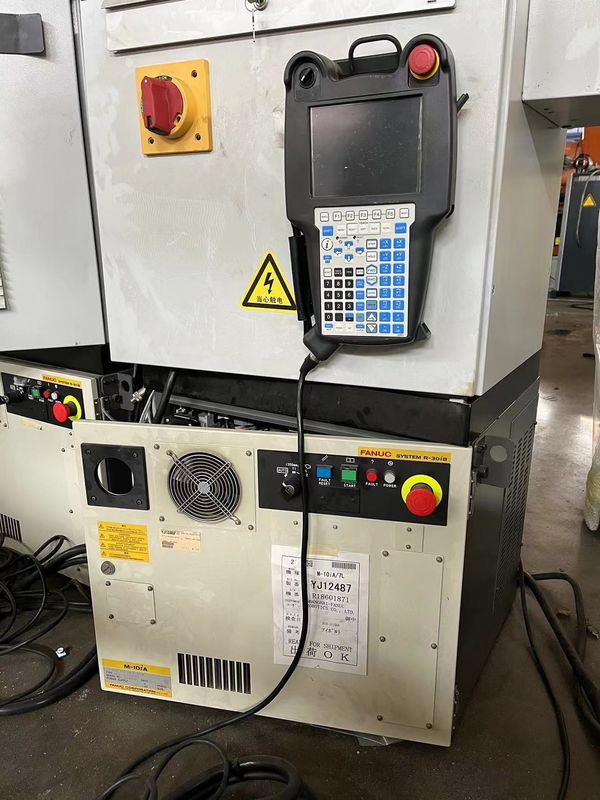

R-30iB control system

Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.

Applications

Loading and unloading of parts , Handling of parts , Assembly of parts

Main specifications

Maximum Load of Robot: 7 kg
Number of axis: 6
Maximum horizontal reach: 1633 mm
Repeatability: ± 0.08 mm
Controller: 30iB

Motion range (°)

Axis J1: 340° (360)°
Axis J2: 250°
Axis J3: 447°
Axis J4: 380°
Axis J5: 380°
Axis J6: 720°

Maximum speed (°/s)

Axis J1: 230°/s
Axis J2: 225°/s
Axis J3: 230°/s
Axis J4: 430°/s
Axis J5: 430°/s
Axis J6: 630°/s

Robot applications

Handling
Assembly
Pick and Place

Applications

Loading and unloading of parts , Handling of parts , Assembly of parts
