NEW ABB IRB 1200 (5/0.9) ,5kg payload , IRB 1200-7/0.7 ,Handling of parts , Polishing , Measurement , Assembly of parts

NEW ABB IRB 1200 (5/0.9) ,5kg payload , IRB 1200-7/0.7 ,Handling of parts , Polishing , Measurement , Assembly of parts

Polishing ABB IRB 1200

ABB IRB 1200 parts

5kg ABB IRB 1200

Place of Origin:

Switzerland

Brand Name:

ABB

Model Number:

ABB IRB 1200-5/0.9

Contact Us
Request A Quote
NEW ABB IRB 1200 (5/0.9) ,5kg payload , IRB 1200-7/0.7 ,Handling of parts , Polishing , Measurement , Assembly of parts
NEW ABB IRB 1200 (5/0.9) ,5kg payload , IRB 1200-7/0.7 ,Handling of parts , Polishing , Measurement , Assembly of parts NEW ABB IRB 1200 (5/0.9) ,5kg payload , IRB 1200-7/0.7 ,Handling of parts , Polishing , Measurement , Assembly of parts
Product Details
Model:
ABB IRB 1200-5/0.9
Payload:
5kg
Range:
900mm
Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
8000USD-8500USD
Packaging Details

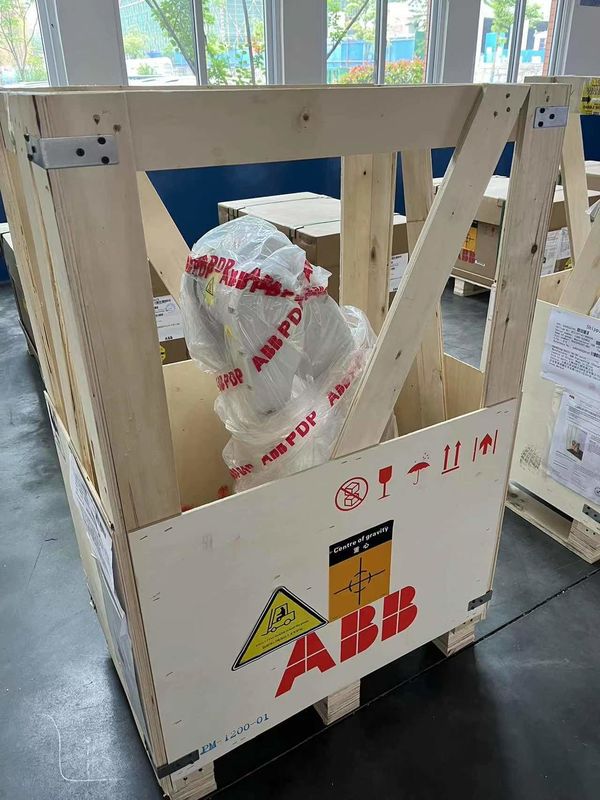

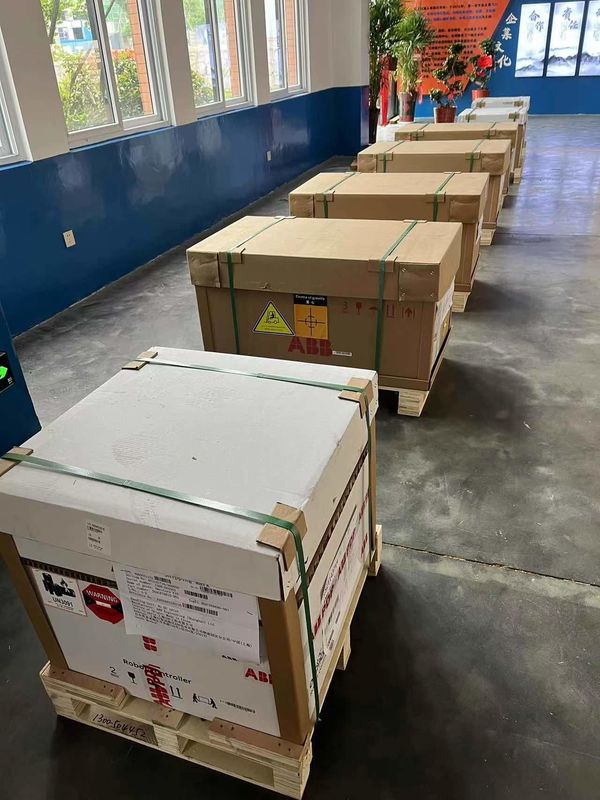

wooden packing
Delivery Time
7 days
Payment Terms
L/C, T/T
Supply Ability
50 PCS
RELATED PRODUCTS
Good price KUKA KR 210 R3100 Ultra C4 Press tending , Palletising , Painting Polishing ,Machining Waterjet cutting 210 Kg 3100 mm online Video

KUKA KR 210 R3100 Ultra C4 Press tending , Palletising , Painting Polishing ,Machining Waterjet cutting 210 Kg 3100 mm

Get Best Price
Good price Yaskawa MA1900 Used Robotic Arm 6 Axis Robot Robotic Arm For Welding online Video

Yaskawa MA1900 Used Robotic Arm 6 Axis Robot Robotic Arm For Welding

Get Best Price
Good price Yaskawa Spraying Used Robotic Arm EPX2900 Working Range 2900mm Payload 20kg online Video

Yaskawa Spraying Used Robotic Arm EPX2900 Working Range 2900mm Payload 20kg

Get Best Price
Good price Used Yaskawa EPX2900 Fully Automatic 6 Axis Spraying Robot Arm With Explosion Proof Device online Video

Used Yaskawa EPX2900 Fully Automatic 6 Axis Spraying Robot Arm With Explosion Proof Device

Get Best Price
Contact Us
+8618123897892
dai155129291@gmail.com
Contact Now
Product Description

The IRB 1200 is designed 15% smaller and 10% shorter cycles which makes it faster has two variables, payload variant of 7 kg and reach 700 mm and payload variant 5 kg And range 900 mm, suitable for a variety of applications, IP40 protection as standard; Cleanroom, IP67 with options available Foundry Plus 2, is adaptable at any angle and offers a large work area usable on a compact surface.

Equipped with the latest IRC5 controller.

IRC5 is ABB’s fifth generation robot controller. Its motion control technology, TrueMove & QuickMove, is key to the robot’s performance in terms of accuracy, speed, cycle-time, programmability and synchronization with external devices.
Based on advanced dynamic modeling, the IRC5 optimizes the performance of the robot for the physically shortest possible cycle time (QuickMove) and precise path accuracy (TrueMove). Together with a speed-independent path, predictable and high- performance behavior is delivered automatically, with no tuning required by the programmer.

RAPID programming language

The perfect combination of simplicity, flexibility and powerful- ness. RAPID is a truly unlimited language with hosts of advanced features and powerful support for many process applications.

Communication

The IRC5 supports the state-of-the-art field busses for I/O and is a well-behaved node in any plant network. Sensor interfaces, remote disk access and socket messaging are examples of the many powerful networking features.

Applications

Handling of parts , Polishing , Measurement , Assembly of parts

Main features

Variants 1/IRB 1200-7/0.7 Variants 2/IRB 1200-5/0.9

Maximum Load of Robot: 7 kg Maximum Load of Robot: 5 kg
Maximum Reach: 700 mm Maximum Reach: 900 mm
Repeatability: 0.02 mm Repeatability: 0.025 mm
Controller: IRC5 Compact / IRC5 Single cabinet Controller: IRC5 Compact / IRC5 Single cabinet

Robot Motion Speed

Axis 1: 288°/s Axis 1: 288°/s
Axis 2: 240°/s Axis 2: 240°/s
Axis 3: 300°/s Axis 3: 300°/s
Axis 4: 400°/s Axis 4: 400°/s
Axis 5: 405°/s Axis 5: 405°/s
Axis 6: 600°/s Axis 6: 600°/s

Axis working range

Axis 1: +170° to -170° Axis 1: +170° to -170°
Axis 2: +135° to -100° Axis 2: +130° to -100°
Axis 3: +70° to -200° Axis 3: +70° to -200°
Axis 4: +270° to -270° Axis 4: +270° to -270°
Axis 5: +130° to -130° Axis 5: +130° to -130°
Axis 6: +360° to -360° Axis 6: +360° to -360°

Applications

Handling of parts , Polishing , Measurement , Assembly of parts
