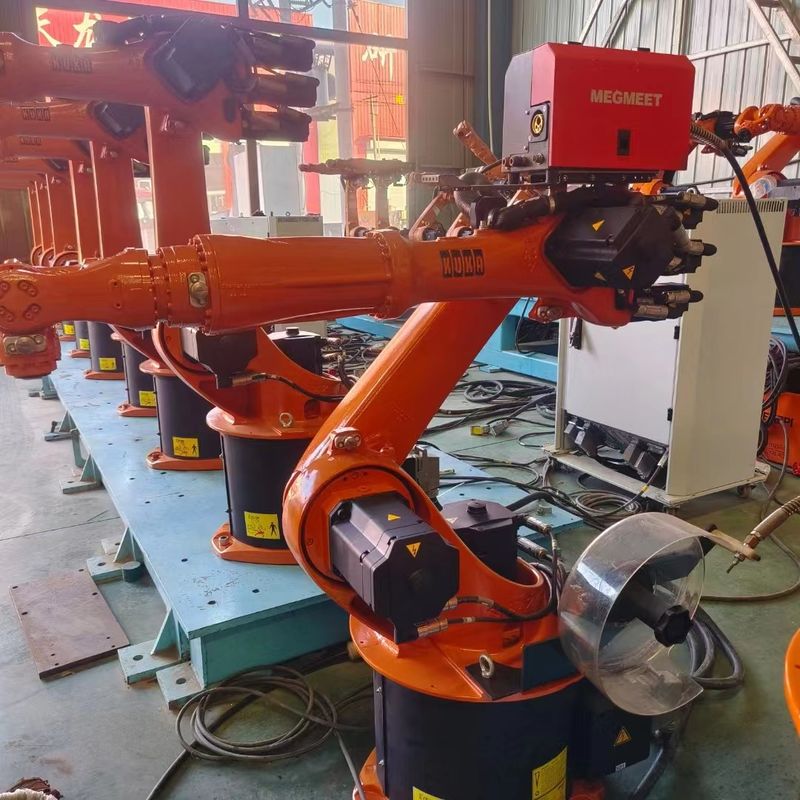

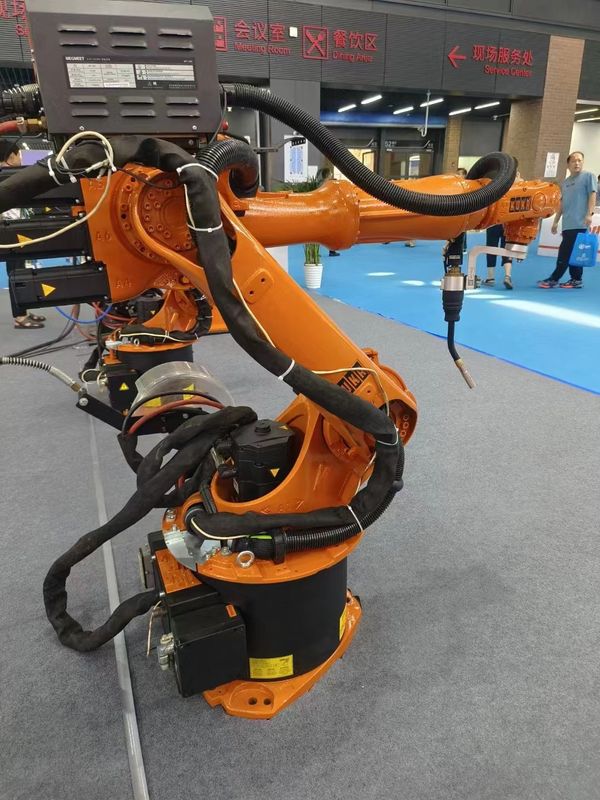

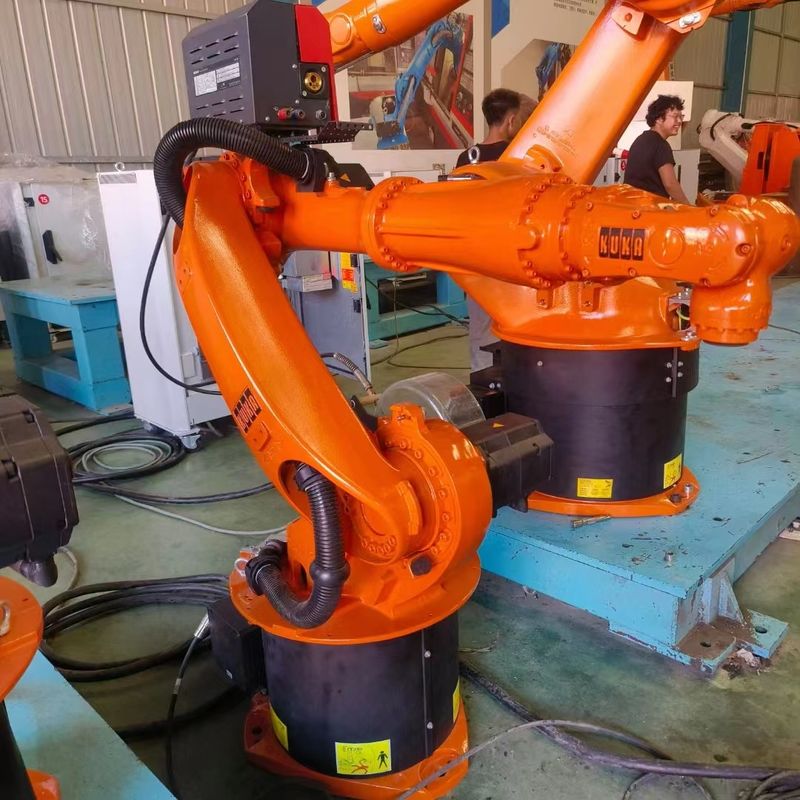

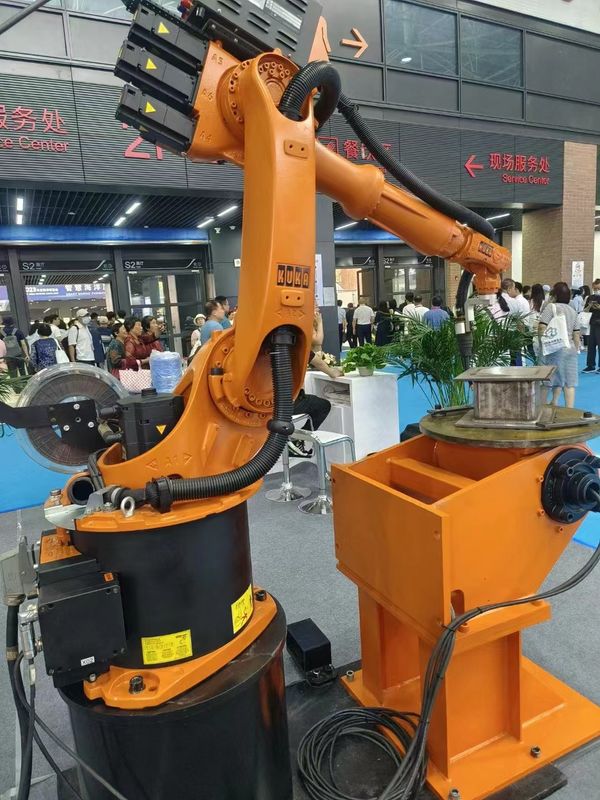

KUKA KR16 L6 Arc Welding , Loading And Unloading Of Parts , Handling Of Parts 1911mm Range 6kg Payload

KUKA KR16 L6 Arc Welding , Loading And Unloading Of Parts , Handling Of Parts 1911mm Range 6kg Payload

KUKA KR16 L6 Arc Welding Arm

6kg Payload Arc Welding Arm

1911mm Arc Welding Arm

Place of Origin:

Germany

Brand Name:

kuka

Model Number:

KUKA KR16L6

Contact Us
Request A Quote
KUKA KR16 L6 Arc Welding , Loading And Unloading Of Parts , Handling Of Parts 1911mm Range 6kg Payload
KUKA KR16 L6 Arc Welding , Loading And Unloading Of Parts , Handling Of Parts 1911mm Range 6kg Payload KUKA KR16 L6 Arc Welding , Loading And Unloading Of Parts , Handling Of Parts 1911mm Range 6kg Payload KUKA KR16 L6 Arc Welding , Loading And Unloading Of Parts , Handling Of Parts 1911mm Range 6kg Payload KUKA KR16 L6 Arc Welding , Loading And Unloading Of Parts , Handling Of Parts 1911mm Range 6kg Payload KUKA KR16 L6 Arc Welding , Loading And Unloading Of Parts , Handling Of Parts 1911mm Range 6kg Payload
Product Details
Model:
KUKA KR16L6
Payload:
6kg
Range:
1911mm
Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
0USD-1200USD
Packaging Details
wooden packing
Delivery Time
7 days
Payment Terms
L/C, T/T
Supply Ability
50 PCS
RELATED PRODUCTS
Good price KUKA KR 210 R3100 Ultra C4 Press tending , Palletising , Painting Polishing ,Machining Waterjet cutting 210 Kg 3100 mm online Video

KUKA KR 210 R3100 Ultra C4 Press tending , Palletising , Painting Polishing ,Machining Waterjet cutting 210 Kg 3100 mm

Get Best Price
Good price Yaskawa MA1900 Used Robotic Arm 6 Axis Robot Robotic Arm For Welding online Video

Yaskawa MA1900 Used Robotic Arm 6 Axis Robot Robotic Arm For Welding

Get Best Price
Good price Yaskawa Spraying Used Robotic Arm EPX2900 Working Range 2900mm Payload 20kg online Video

Yaskawa Spraying Used Robotic Arm EPX2900 Working Range 2900mm Payload 20kg

Get Best Price
Good price Used Yaskawa EPX2900 Fully Automatic 6 Axis Spraying Robot Arm With Explosion Proof Device online Video

Used Yaskawa EPX2900 Fully Automatic 6 Axis Spraying Robot Arm With Explosion Proof Device

Get Best Price
Contact Us
+8618123897892
dai155129291@gmail.com
Contact Now
Product Description

Due to its versatility and flexibility, the KR 16 L6 is at home in most of the manufacturing industries. Short cycle times and high accuracy.
Mounting positions: Floor, ceiling, wall.

This robot is equipped with the KRC2 Ed05 controller on Win XP .The KR 16 L6 robot controller makes programming easier with its Microsoft Windows interface. It is expandable, can be integrated into networks via a bus, and contains ready-made software packages.



KR C2 Ed05 features:

* Open, network-capable PC technology
* 2 free slots for external axes
* DeviceNet and Ethernet slots for common bus systems (e.g. INTERBUS, PROFIBUS, DeviceNet) provided as standard
* Motion profile function for optimal interaction between the individual robot motors and their velocity
* Floppy disk and CD-ROM drives for data backup
* Facilities such as remote diagnosis via the Internet
* Simple operation and programming via KUKA Control Panel (KCP) with Windows user interface
* Compact control cabinet
* Ergonomic KUKA Control Panel (KCP)

Robot Info

  • Axes: 6
  • Payload: 16 kg
  • H-Reach: 1610 mm
  • Repeatability: ±0.1 mm
  • Robot Mass: 235 kg
  • Mounting: floor, ceiling, wall

Robot Motion Speed:

  • Axis 1 156 °/s (2.72 rad/s)
  • Axis 2 156 °/s (2.72 rad/s)
  • Axis 3 156 °/s (2.72 rad/s)
  • Axis 4 330 °/s (5.76 rad/s)
  • Axis 5 330 °/s (5.76 rad/s)
  • Axis 6 615 °/s (10.73 rad/s)

Robot Aplications:

  • Machining
  • Machine tending
  • Polishing, grinding and deburring
  • Coating and bonding
  • Handling
  • Measuring and testing
  • Assembly
  • Palletizing and order picking
  • Cutting
  • Welding
