Interbus Fiber Optic Card KUKA 00-118-966 C2 Interbus Copper / PCI, Interbus Master/Slave card from Phoenix, 2 cards

Interbus Fiber Optic Card KUKA 00-118-966 C2 Interbus Copper / PCI, Interbus Master/Slave card from Phoenix, 2 cards

Array Robot Spare Parts

Interbus Master/Slave card Robot Spare Parts

Place of Origin:

Germany

Brand Name:

kuka

Model Number:

00-118-966 C2 Interbus

Contact Us
Request A Quote
Interbus Fiber Optic Card KUKA 00-118-966 C2 Interbus Copper / PCI, Interbus Master/Slave card from Phoenix, 2 cards
Interbus Fiber Optic Card KUKA 00-118-966 C2 Interbus Copper / PCI, Interbus Master/Slave card from Phoenix, 2 cards Interbus Fiber Optic Card KUKA 00-118-966 C2 Interbus Copper / PCI, Interbus Master/Slave card from Phoenix, 2 cards Interbus Fiber Optic Card KUKA 00-118-966 C2 Interbus Copper / PCI, Interbus Master/Slave card from Phoenix, 2 cards Interbus Fiber Optic Card KUKA 00-118-966 C2 Interbus Copper / PCI, Interbus Master/Slave card from Phoenix, 2 cards Interbus Fiber Optic Card KUKA 00-118-966 C2 Interbus Copper / PCI, Interbus Master/Slave card from Phoenix, 2 cards Interbus Fiber Optic Card KUKA 00-118-966 C2 Interbus Copper / PCI, Interbus Master/Slave card from Phoenix, 2 cards Interbus Fiber Optic Card KUKA 00-118-966 C2 Interbus Copper / PCI, Interbus Master/Slave card from Phoenix, 2 cards
Product Details
Model:
00-118-966 C2 Interbus
Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
0USD-1200USD
Packaging Details
wooden packing
Delivery Time
7 days
Payment Terms
L/C, T/T
Supply Ability
50 PCS
RELATED PRODUCTS
Good price 550W Yaskawa Robot Arm Parts Motor SGMRS-06A2B-YR11 online Video

550W Yaskawa Robot Arm Parts Motor SGMRS-06A2B-YR11

Get Best Price
Good price 1150W Yaskawa Robot Accessories Servo Motor SGMRS-12A2B-YR11 online Video

1150W Yaskawa Robot Accessories Servo Motor SGMRS-12A2B-YR11

Get Best Price
Good price Yaskawa Robot Arm Parts Servo Motor SGMRS-13A2A-YR11 Power 1300w online Video

Yaskawa Robot Arm Parts Servo Motor SGMRS-13A2A-YR11 Power 1300w

Get Best Price
Good price 1400w Yaskawa Servo Motor SGMGH-14A2A-YR13 online Video

1400w Yaskawa Servo Motor SGMGH-14A2A-YR13

Get Best Price
Contact Us
+8618123897892
dai155129291@gmail.com
Contact Now
Product Description

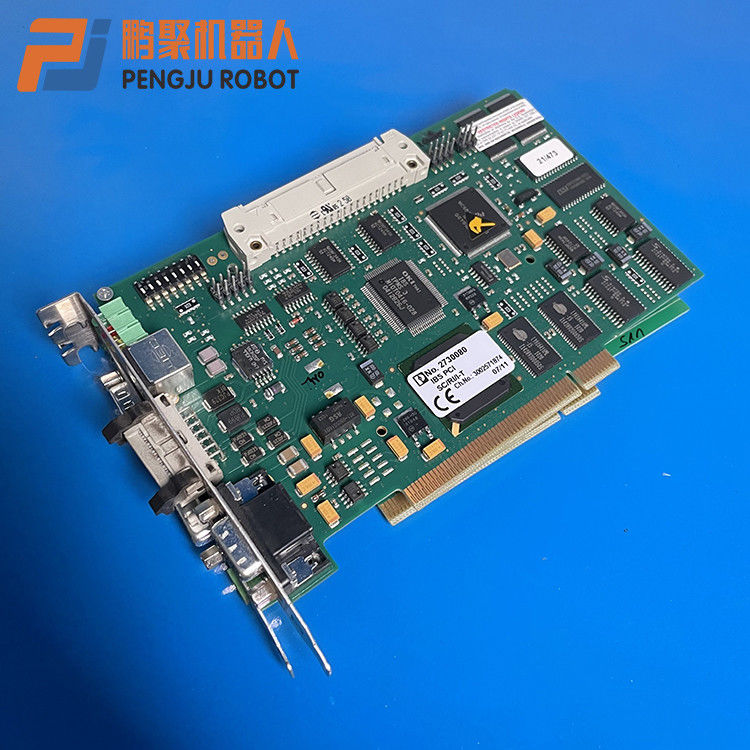

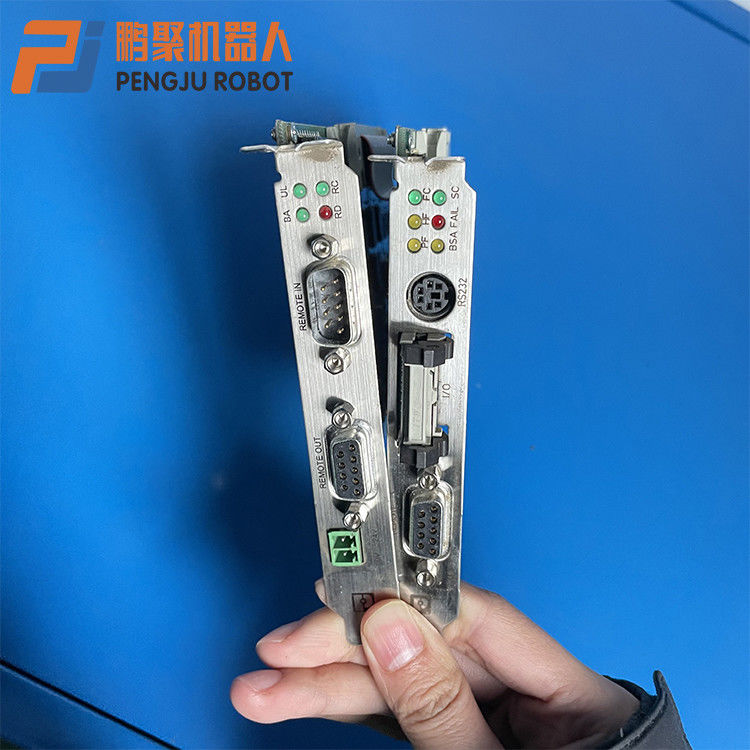

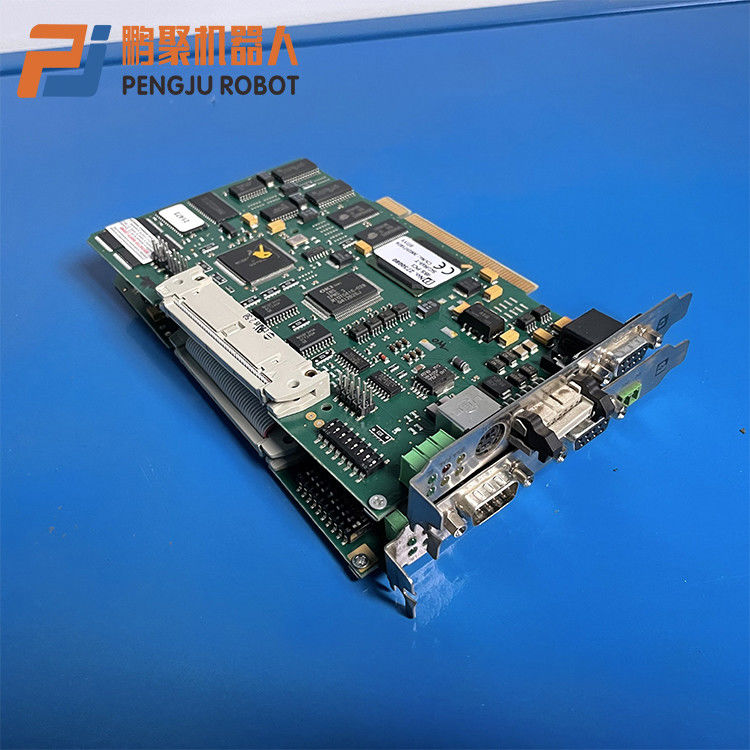

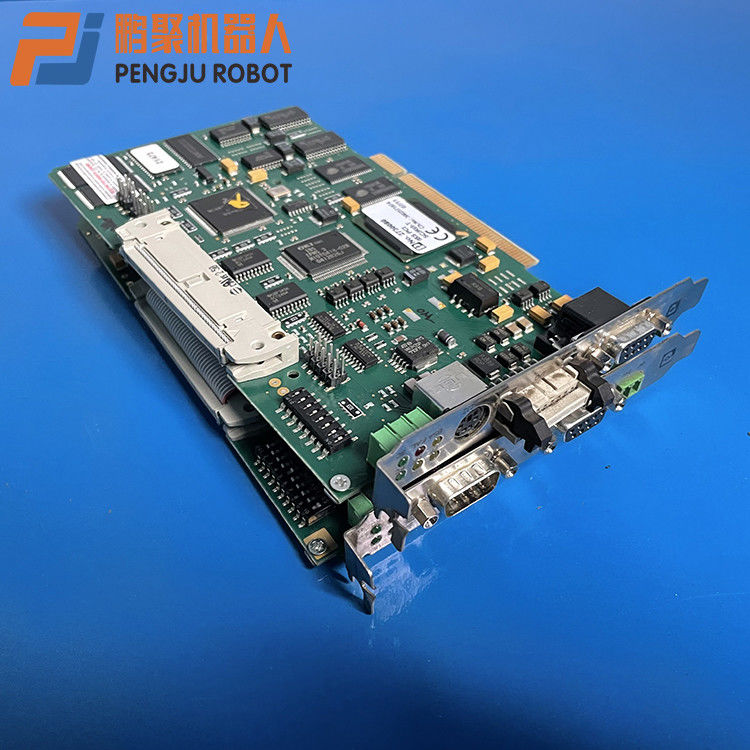

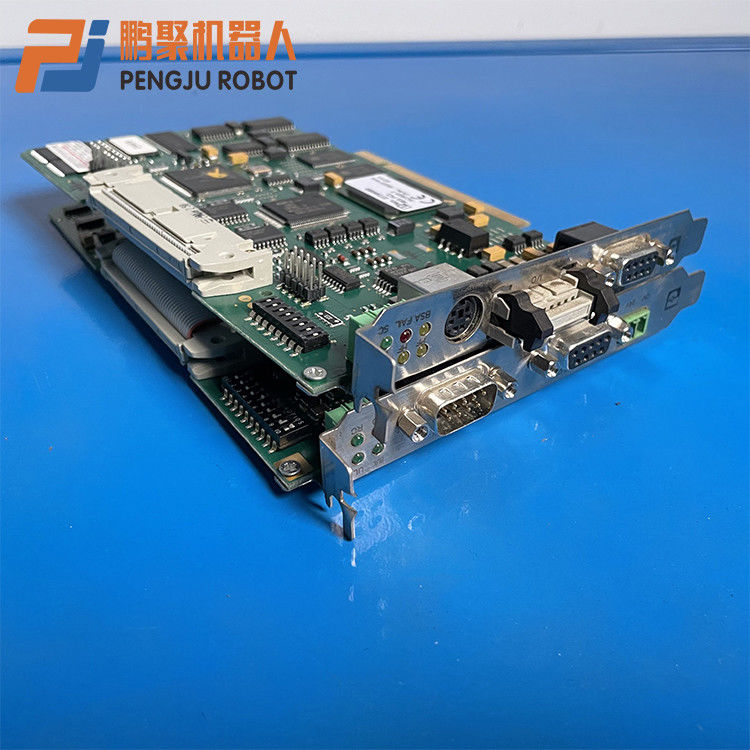

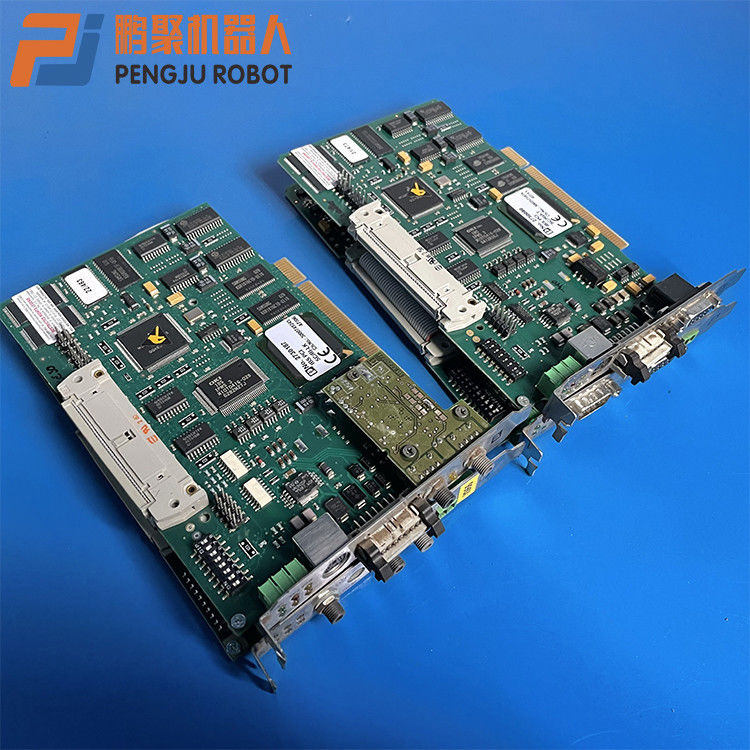

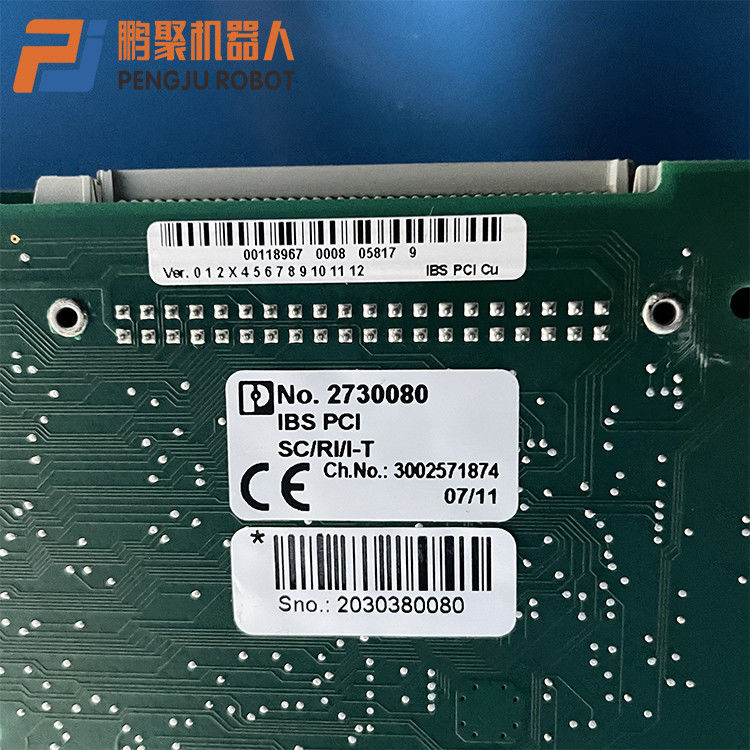

Interbus Copper/PCI, Interbus Master/Slave card from Phoenix, 2 cards combined.
Copper Wiring: The standard connection can be universally used and is currently the most commonly used transmission medium. It utilizes single shield, twisted-pair cables such as Li-YCY 3x2x0.25mm. The maximum distance between two devices without additional repeater is 400m.

For the Interbus copper card, interfaces with circular connectors and multibus connectors are available.

Interbus Optical Fiber/PCI, Interbus Master/Slave card from Phoenix, 2 cards combined.
Fiber-Optic Cables: Different duplex fibers can be used, including polymer fiber (max. 50m), HCS fiber (max. 300m), and glass fiber (max. 3000m). The Interbus optical fiber card can only be used with a cable inlet.

Features of the Interbus cards:
- Range of Application: Automation
- Availability: Compatible with KUKA robot controller KR C2 edition 2005 and later versions with system software KR C V5.2 onwards.
- Scope of Delivery: Includes documentation in German and English, with detailed documentation on EN-standards (refer to Phoenix documentation for more information).

Please note:
The delivery via KUKA enables integration of the KUKA robot controller into an Interbus System. However, KUKA Roboter is not responsible for the complete system. The diagnostic cable (Interbus configuration tool) and the connector required for PC cabling (with Wieland cable inlet) are not included in the scope of delivery.

Interbus Fiber Optic Card KUKA 00-118-966 C2 Interbus Copper / PCI, Interbus Master/Slave card from Phoenix, 2 cards 0Interbus Fiber Optic Card KUKA 00-118-966 C2 Interbus Copper / PCI, Interbus Master/Slave card from Phoenix, 2 cards 1Interbus Fiber Optic Card KUKA 00-118-966 C2 Interbus Copper / PCI, Interbus Master/Slave card from Phoenix, 2 cards 2
