Kuka KR16-2 KR16L6-2 Automatic Six Axis Welding Robot Arm Load 6-16kg

Kuka KR16-2 KR16L6-2 Automatic Six Axis Welding Robot Arm Load 6-16kg

KR16-2 Welding Robot Arm

Load 6kg Welding Robot Arm

Six Axis Used KUKA Robots

Brand Name:

KUKA Robot

Model Number:

KR16-2

Contact Us
Request A Quote
Product Details
Type:
KR16-2 KR16L6-2
Maximum Reach:
1611-1911mm
Rated Payload:
6-16 Kg
Number Of Axes:
6
Mounting Position:
Floor, Ceiling
Positioning Repeatability:
±0.05 Mm
Controller:
C2
Approximate Mass:
235 Kg
Power Consumption:
7.3 KVA
Noise Level:
< 75 DB
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden box
Delivery Time
3-7work day
Payment Terms
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 sets
Product Description

Kuka Robot KR16-2 KR16L6-2 Fully Automatic Six Axis Welding Robot Arm Extension 1611-1911mm Load 6-16kg

Type KR16
Maximum reach 1611 mm
Rated payload 16 kg
Suppl. load, arm/link arm/rotating col. 10/-/20 kg
Suppl. load, arm + link arm, max. -
Number of axes 6
Mounting position Floor, ceiling
Positioning repeatability ±0.05mm
Controller C2
Weight (excluding controller), approx 235 kg
Protection classification IP 65
Power Consumption 7.3 kVA
Robot footprint 500 mm x 500 mm
Noise level < 75 dB
Axis data Range (software) Speed with rated payload
Axis 1 (A1) ±185° 156 °/S
Axis 2 (A2) +35°/-155° 156°/S
Axis 3 (A3) +154°/-130° 156°/S
Axis 4 (A4) ±350° 343°/S
Axis 5 (A5) ±130° 362°/S
Axis 6 (A6) ±350° 659°/S


1. High precision: The KR16-2 robot adopts high-precision joint drive technology, which can achieve high-speed and high-precision operations.
2. Efficiency: The KR16-2 robot has the ability to respond quickly and work efficiently, enabling efficient production line automation.
3. Flexibility: The KR16-2 robot has strong flexibility and is suitable for various application scenarios.
4. Programmability: The KR16-2 robot can achieve various operations through programming, such as assembly, transportation, welding, etc.
5. Safety: The KR16-2 robot is equipped with a series of safety functions, such as collision detection and shutdown buttons, to ensure personnel safety.
6. Reliability: The KR16-2 robot adopts reliable sensors and control systems, which can ensure the long-term stable operation of the robot.
7. Scalability: The KR16-2 robot supports multiple expansion modules, such as sensors, actuators, etc., and can be flexibly expanded as needed.
8. Visualization: The KR16-2 robot is equipped with a visualization system that can display real-time information such as robot status and parameters, making it convenient for personnel to operate and maintain.
9. Low energy consumption: The KR16-2 robot adopts an efficient power system, which has low energy consumption and can reduce operating costs.
10. Globalization: The KR16-2 robot has global adaptability and can be used and deployed in different countries and regions.

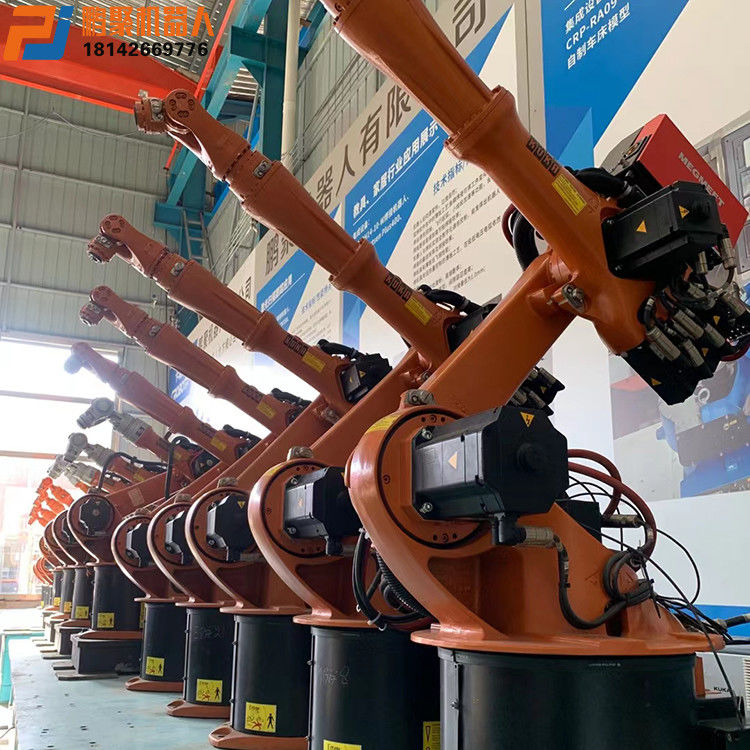

 Kuka KR16-2 KR16L6-2 Automatic Six Axis Welding Robot Arm Load 6-16kg 0

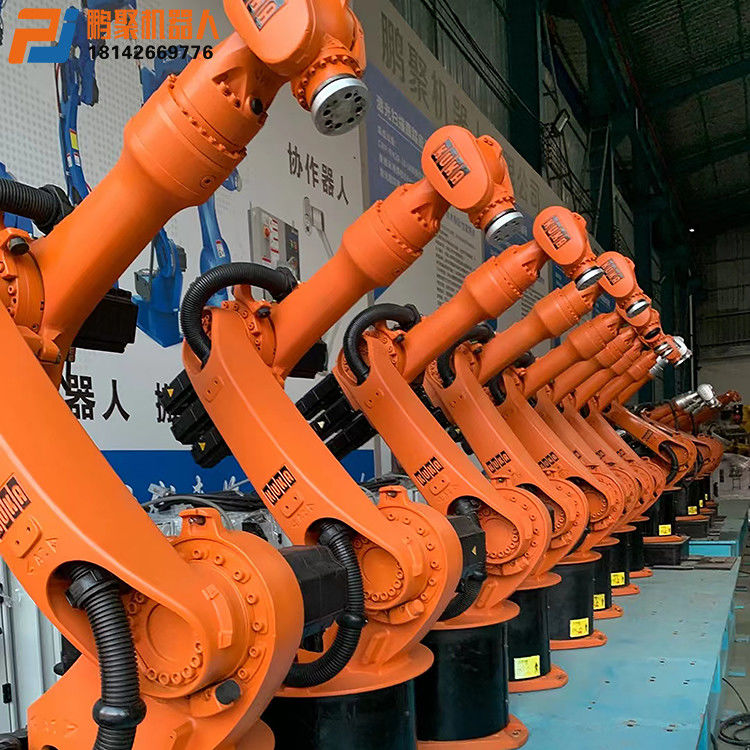

Kuka KR16-2 KR16L6-2 Automatic Six Axis Welding Robot Arm Load 6-16kg 1

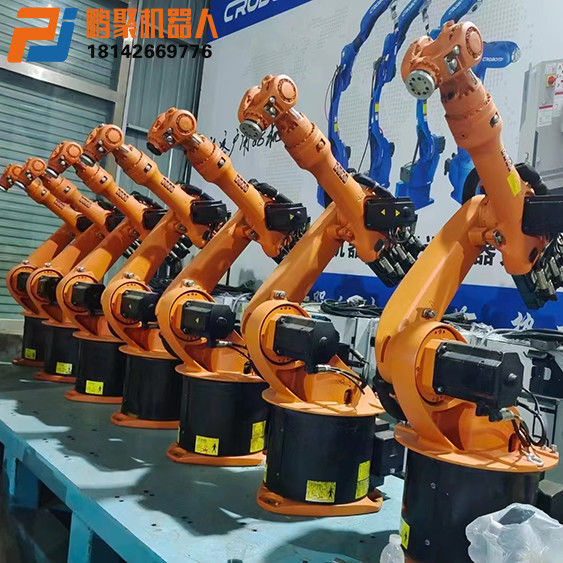

Kuka KR16-2 KR16L6-2 Automatic Six Axis Welding Robot Arm Load 6-16kg 2
