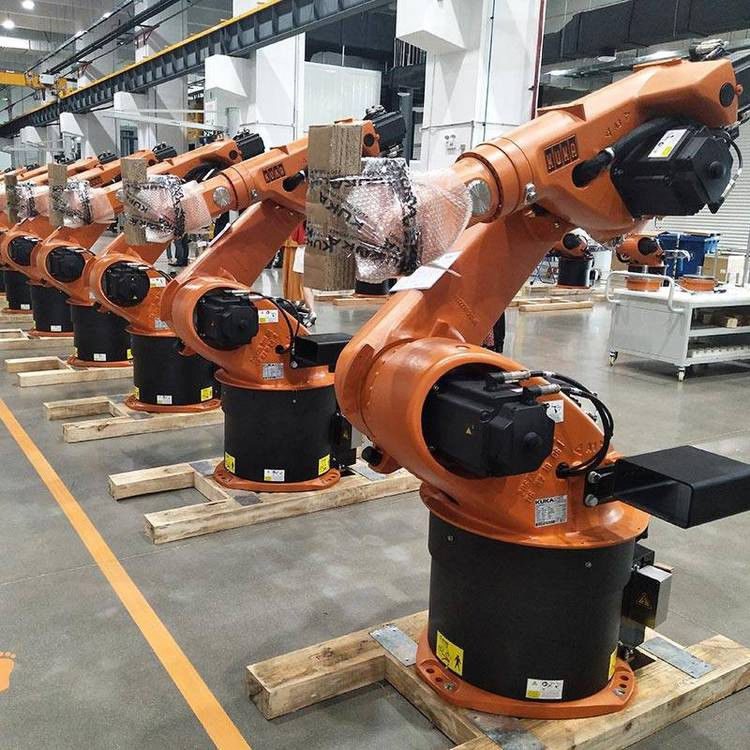

Kuka Robot KR60 Fully Automatic Six Axis Loading and Unloading Robot Arm Extension 2033mm Load 60kg
| Type |
KR60 |
| Maximum reach |
2033 mm |
| Rated payload |
60 kg |
| Number of axes |
6 |
| Mounting position |
Floor, ceiling |
| Positioning repeatability |
±0.06 mm |
| Controller |

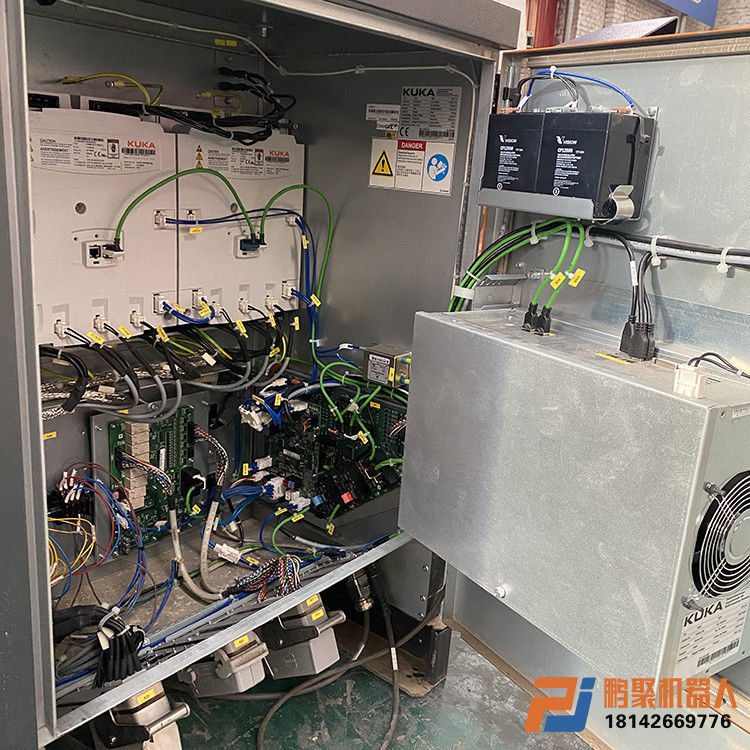

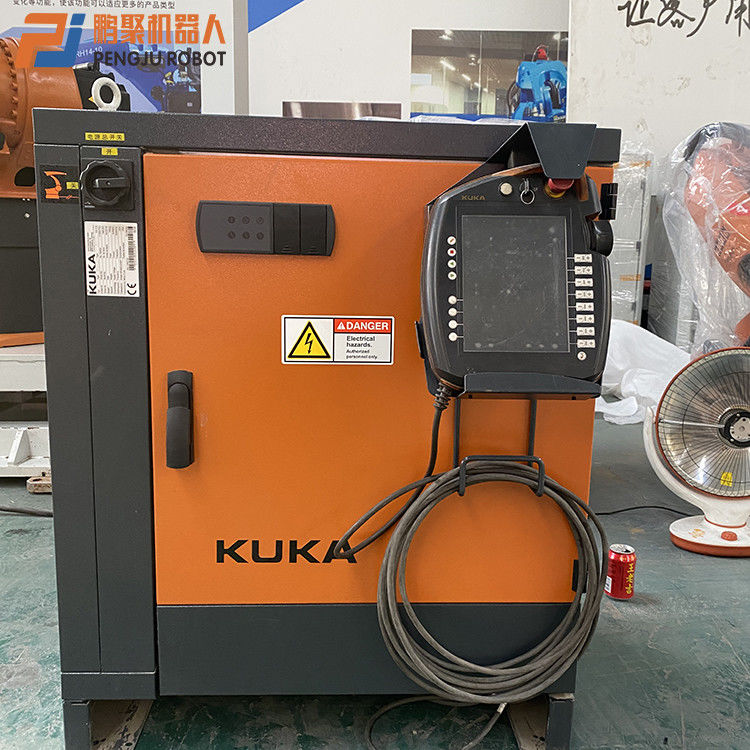

KR C4 |
| Weight (excluding controller), approx |
665 kg |
| Temperature during operation |
+10 °C to +55 °C |
| Protection classification |
IP 65 |
| Connection |
7.3 kVA |
| Noise level |
< 75 dB |
| |
| Axis data |
Robot Motion Range |
Robot Motion Speed |
| |
|
60kg |
| Axis 1 (A1) |
+185° - 185° |
128 °/s (2.23 rad/s) |
| Axis 2 (A2) |
+35° - 135° |
102 °/s (1.78 rad/s) |
| Axis 3 (A3) |
+158° - 120° |
128 °/s (2.23 rad/s) |
| Axis 4 (A4) |
+350° - 350° |
260 °/s (4.54 rad/s) |
| Axis 5 (A5) |
+119° - 119° |
245 °/s (4.28 rad/s) |
| Axis 6 (A6) |
+350° - 350° |
322 °/s (5.62 rad/s) |

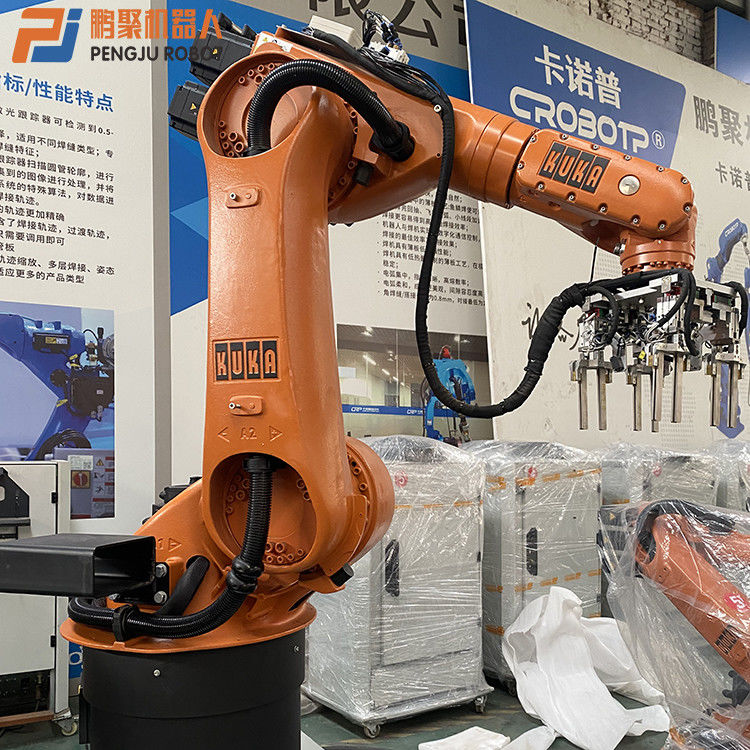

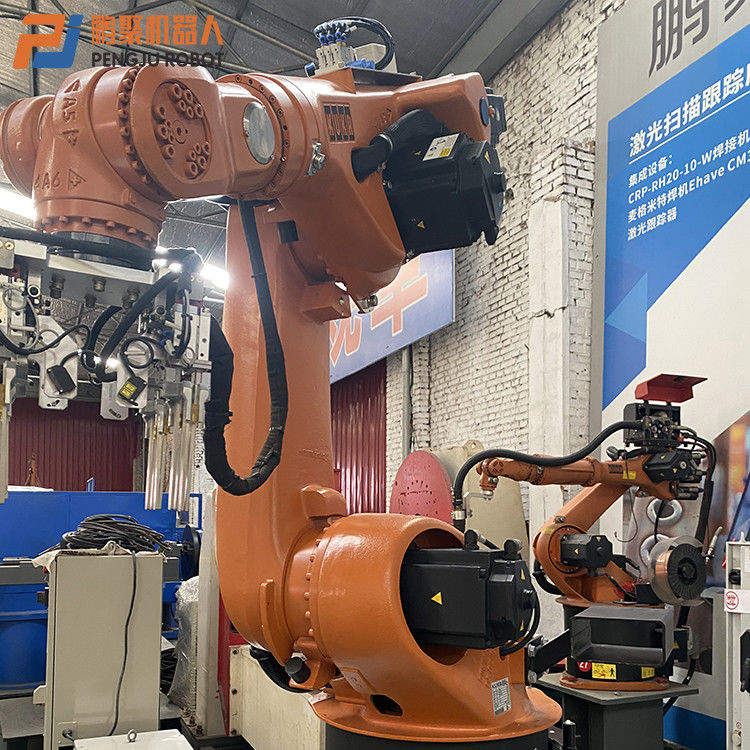

The Kurka robot KR60 is a six axis robot with many advantages, including:
1. High precision: The KUKA robot KR60 is driven by a high-precision linear motor, which can achieve extremely high motion accuracy and repetitive accuracy.
2. High reliability: The KUKA robot KR60 adopts a modular design, which has high reliability and durability, and can maintain efficient and accurate performance during long-term operation.
3. Flexibility: The KUKA robot KR60 can adapt to various tasks and environments, with excellent flexibility and scalability, and can provide flexible solutions for different types of enterprise users.
4. Easy to maintain: The modular design of the Kuka robot KR60 makes maintenance and repair easier, thereby reducing maintenance costs.
5. Cost effectiveness: The Kuka robot KR60 is an efficient, accurate, and reliable robot system with excellent cost effectiveness, which can help enterprise users quickly achieve investment returns.
In summary, the Kuka robot KR60-3 is a high-performance, highly reliable, and easy to maintain robot system that can provide efficient, accurate, and reliable robot solutions for enterprise users.
FQA
Q:Who are we?
A:Pengju Robot Co., Ltd. was established in 2011 and is an intelligent equipment company specializing in imported robot trade, automation project integration, mechanical equipment leasing, sales and repair of robots and robot accessories, robot maintenance, and robot technology training.
The company has established large-scale sales service centers and technology application centers in Shenzhen, Chongqing, Xiong'an New Area, and Changsha. The company has reserved a group of professional technical engineers, who can provide professional and timely services and complete robot application solutions to support customers' demand for automated production lines to improve production efficiency. The company has always adhered to the corporate tenet of "professionalism is the foundation, service is the guarantee, and quality is the reputation", established a corporate image of "professionalism, professionalism, integrity, and progress", and wholeheartedly provides better products and services for the vast number of users.
Our goal is to enable customers to truly use robots well
Q:What brand of robot can you buy from us?
A:We have Kuka robots, Yaskawa robots, Fanuc robots, ABB robots, and Nazhi robots
Q:Do you recycle robots?
A:Recycling, if you have a robot that needs to be recycled, please contact us
