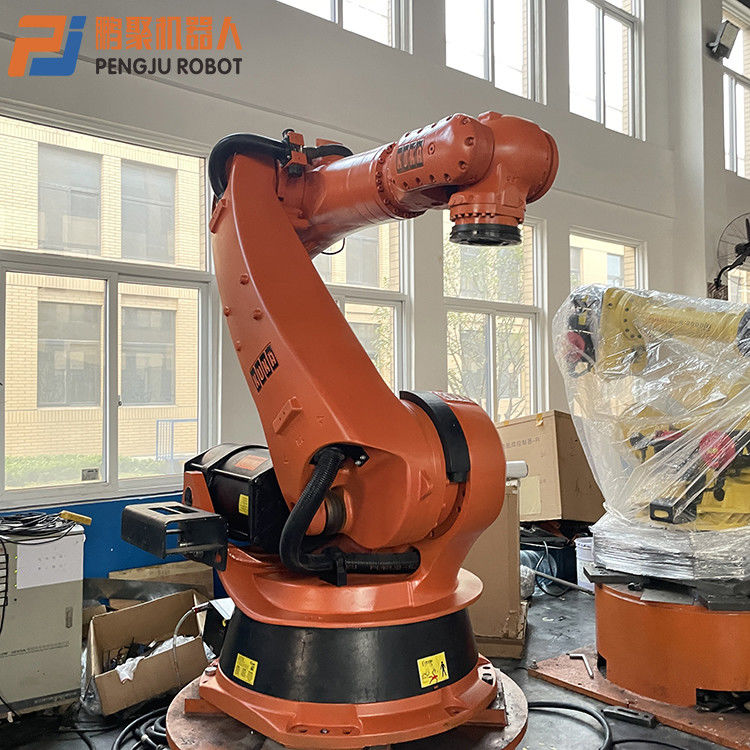

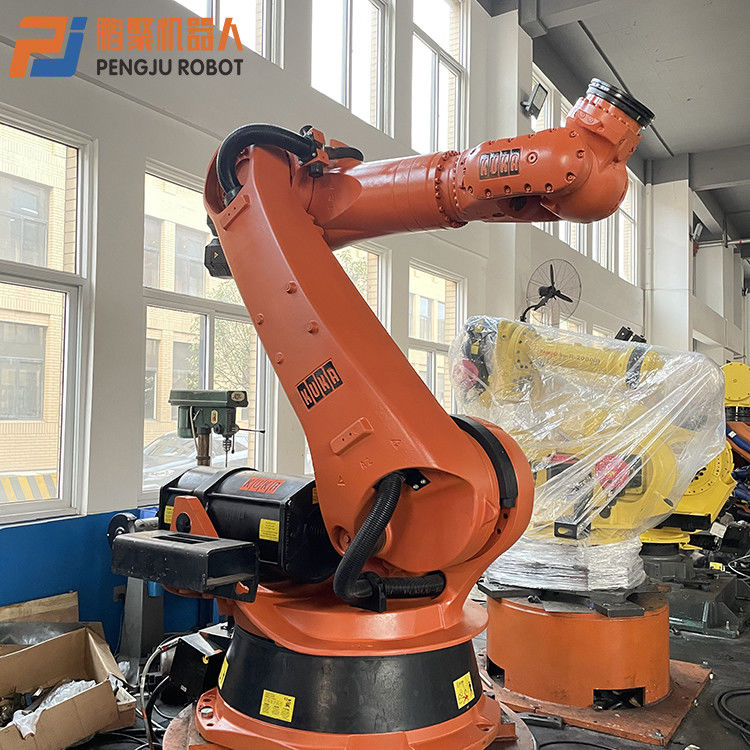

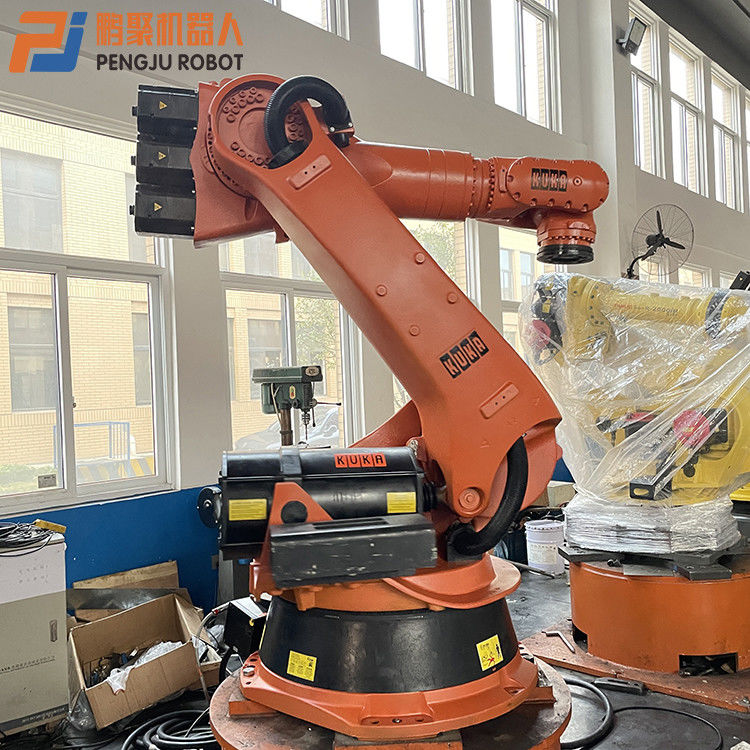

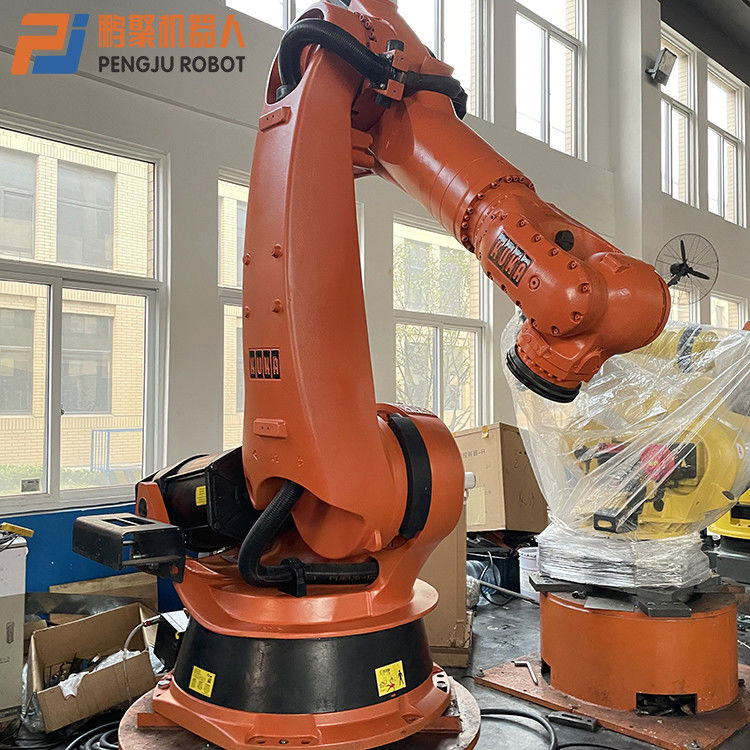

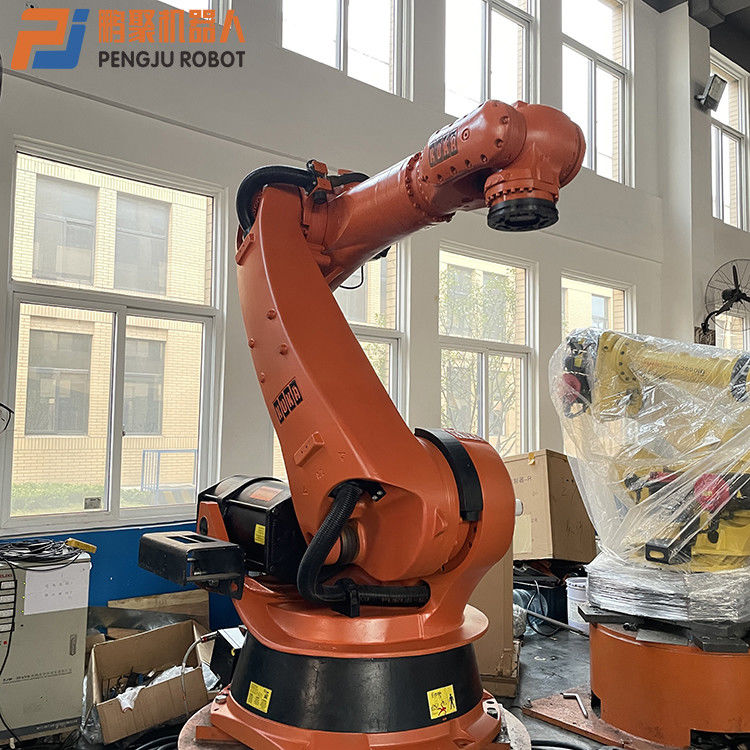

Kuka Robot KR210 Multifunctional Stacking Robot Handling Robot Arm Extension 2700mm Load 210kg
| Type |
KR 210-2 |
KR 210 L180-2 |
KR 210 L150-2 |
| Maximum reach |
2,700 mm |
2,900 mm |
3,100 mm |
| Rated payload |
210 kg |
180 kg |
150 kg |
| Suppl. load, arm/link arm/rotating col. |
50/100/300 kg |
| Suppl. load, arm + link arm, max. |
100 kg |
| Maximum total load |
610 kg |
580 kg |
550 kg |
| Number of axes |
6 |
| Mounting position |
Floor, ceiling |
| Variant |
Cleanroom, Foundry |
| Positioning repeatability |
±0.06 mm |
| Controller |
KR C2 |
| Weight (excluding controller), approx |
1,267 kg |
1,277 kg |
1,285 kg |
| Temperature during operation |
+10 °C to +55 °C |
| Protection classification |
IP 65 |
| Robot footprint |
1,006 mm x 1,006 mm |
| Connection |
7.3 kVA |
| Noise level |
< 75 dB |
| |
| Axis data |
Range (software) |
Speed with rated payload |
| |
|
210 kg |
180 kg |
150 kg |
| Axis 1 (A1) |
±185° |
86°/s |
86°/s |
86°/s |
| Axis 2 (A2) |
0°/–146° |
84°/s |
84°/s |
84°/s |
| Axis 3 (A3) |
+155°/–119° |
84°/s |
84°/s |
81°/s |
| Axis 4 (A4) |
±350° |
100°/s |
100°/s |
100°/s |
| Axis 5 (A5) |
±125° |
110°/s |
110°/s |
110°/s |
| Axis 6 (A6) |
±350° |
184°/s |
184°/s |
184°/s |
1. Efficient production efficiency: The KUKA robot KR210 has fast programming and adaptability, which can efficiently complete various production tasks and improve production efficiency.
2. High precision: The KUKA robot KR210 adopts a laser tracking system and high-precision sensors, which can achieve extremely high accuracy and repeatability.
3. Flexibility: The KUKA robot KR210 has strong flexibility and can adapt to various types of production tasks, such as assembly, handling, welding, etc.
4. Energy efficiency: The Kuka robot KR210 adopts advanced energy management technology, which can minimize energy consumption and improve energy efficiency.
5. Security: The KUKA robot KR210 is equipped with various safety devices, such as self-protection systems, safety door systems, etc., which can improve the safety of the robot and prevent accidents from occurring.
In summary, the Kuka robot KR210 has various advantages such as efficiency, high precision, flexibility, energy efficiency, and safety, and can provide users with high-quality robot automation solutions.
FQA
Q:Who are we?
A:Pengju Robot Co., Ltd. was established in 2011 and is an intelligent equipment company specializing in imported robot trade, automation project integration, mechanical equipment leasing, sales and repair of robots and robot accessories, robot maintenance, and robot technology training.
The company has established large-scale sales service centers and technology application centers in Shenzhen, Chongqing, Xiong'an New Area, and Changsha. The company has reserved a group of professional technical engineers, who can provide professional and timely services and complete robot application solutions to support customers' demand for automated production lines to improve production efficiency. The company has always adhered to the corporate tenet of "professionalism is the foundation, service is the guarantee, and quality is the reputation", established a corporate image of "professionalism, professionalism, integrity, and progress", and wholeheartedly provides better products and services for the vast number of users.
Our goal is to enable customers to truly use robots well
Q:What brand of robot can you buy from us?
A:We have Kuka robots, Yaskawa robots, Fanuc robots, ABB robots, and Nazhi robots
Q:Do you recycle robots?
A:Recycling, if you have a robot that needs to be recycled, please contact us
