second-hand NACHI MC20-01 Welding Loading Unloading Robot Multifunctional Industrial Robot

second-hand NACHI MC20-01 Welding Loading Unloading Robot Multifunctional Industrial Robot

Welding Loading Unloading Robot

Multifunctional Loading Unloading Robot

Articulated Construction Industrial Welding Robot

Brand Name:

NACHI

Model Number:

MC20-01

Contact Us
Request A Quote
Product Details
Working Radius:
1722mm
Construction:
Articulated Construction
Number Of Axes:
6
Drive System:
AC Servo System
Payload:
20kg
Ambient Temperature:
0~45℃
Robot Mass:
220kg
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$11630
Packaging Details
wooden box
Delivery Time
3-7work day
Payment Terms
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 sets
Product Description

Nachi Fujitsu NACHI MC20-01 welding loading and unloading robot multi-functional and efficient industrial robot

Item

Specifications

Robot model MC20-01
Construction Articulated construction
Number of axes 6
Drive system AC servo system
Max. operating area J1 ±3.14rad (±180°)
J2 +1.05~-2.53rad (+60~-145°)
J3 +4.22~-2.84rad (+242~-163°)
J4 ±3.14rad (±180°)
J5 ±2.42rad (±139°)
J6 ±6.28rad (±360°)
Max. speed J1 2.96rad/s (170°/s)
J2 2.96rad/s (170°/s)
J3 2.96rad/s (170°/s)
J4 6.28rad/s (360°/s)
J5 6.28rad/s (360°/s)
J6 10.5rad/s (600°/s)
Payload 20kg
Wrist torque J4 49Nm
J5 49Nm
J6 23.5Nm
Wrist moment of inertia J4 1.6kgm²
J5 1.6kgm²
J6 0.8kgm²
Position repeat accuracy ±0.06mm
Ambient temperature 0~45℃
Installation Floor mountedCeiling mounted
Robot mass 220kg



Flexible handling of various processes
●Enlarging the range of motion and achieving higher waterproof and dustproof performance able. It can respond to various work environments of customers.
Compact Body, Powerful Arm
●The installation width is only 280mm.
The strong wrist can freely carry various workpieces.
Suitable for various purpose.
●Wide envelope and environment protection makes MC20valuable robot for various kind of manufacturingprocesses.
Compact design
●Easy installation by compact design, and powerful wristsupports to transfer large or heavy works.

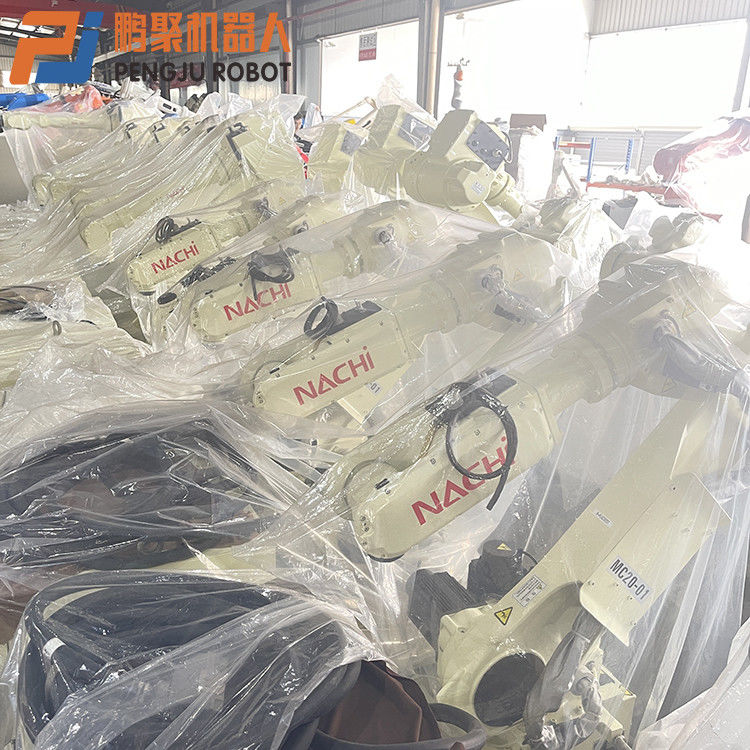

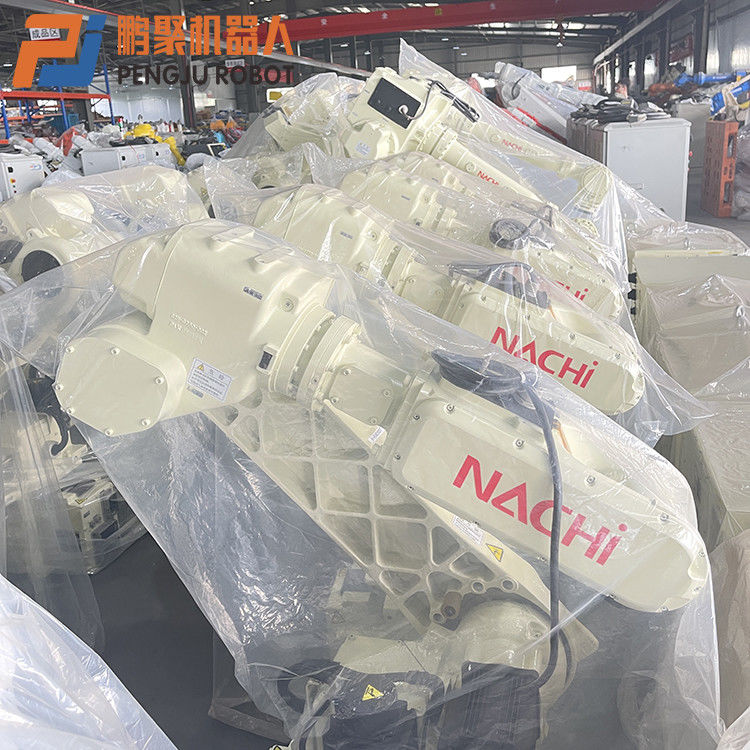

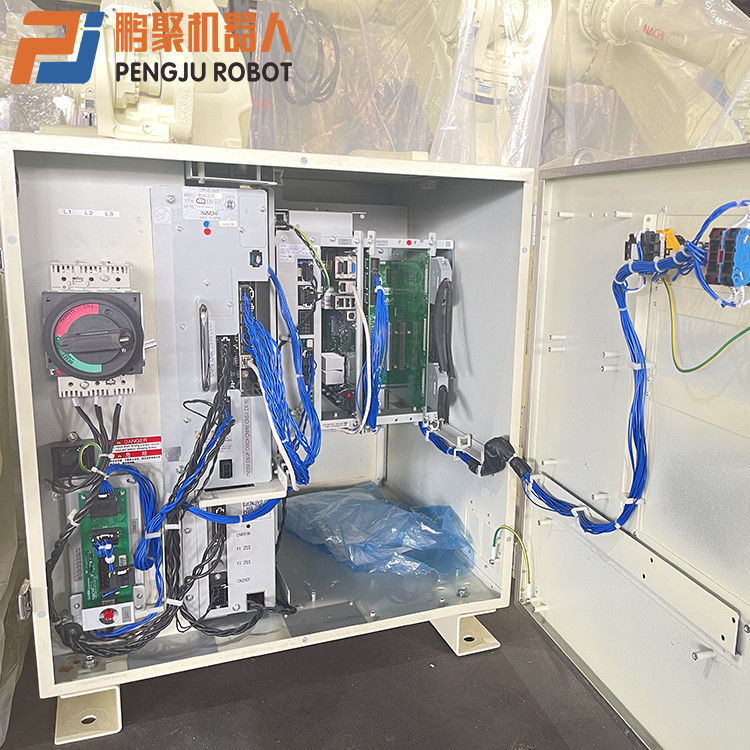

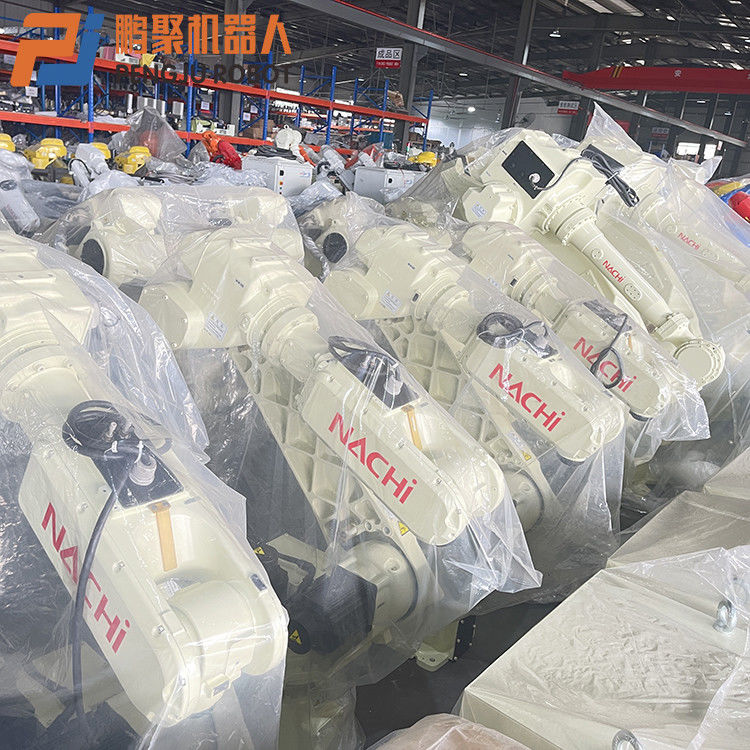

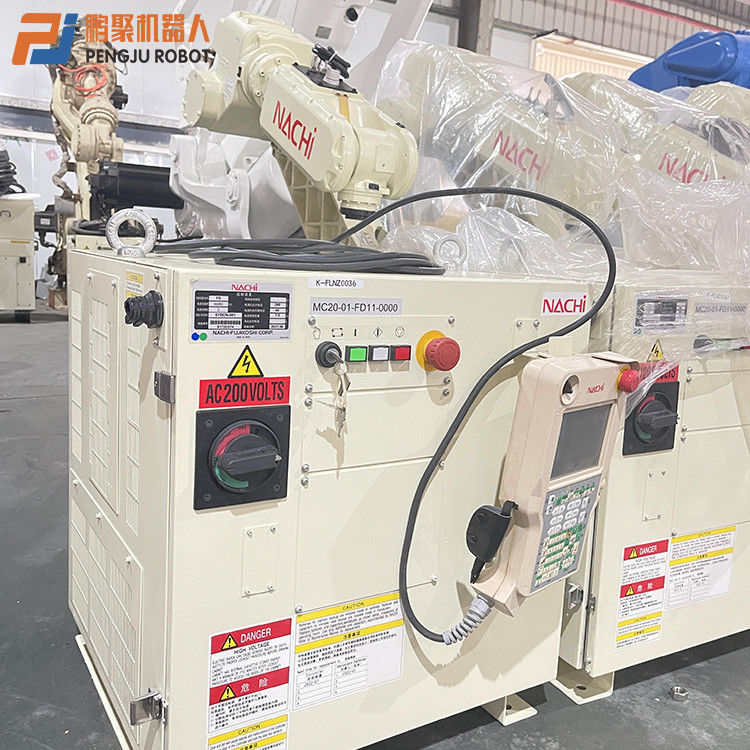

second-hand NACHI MC20-01 Welding Loading Unloading Robot Multifunctional Industrial Robot 0

second-hand NACHI MC20-01 Welding Loading Unloading Robot Multifunctional Industrial Robot 1

second-hand NACHI MC20-01 Welding Loading Unloading Robot Multifunctional Industrial Robot 2
