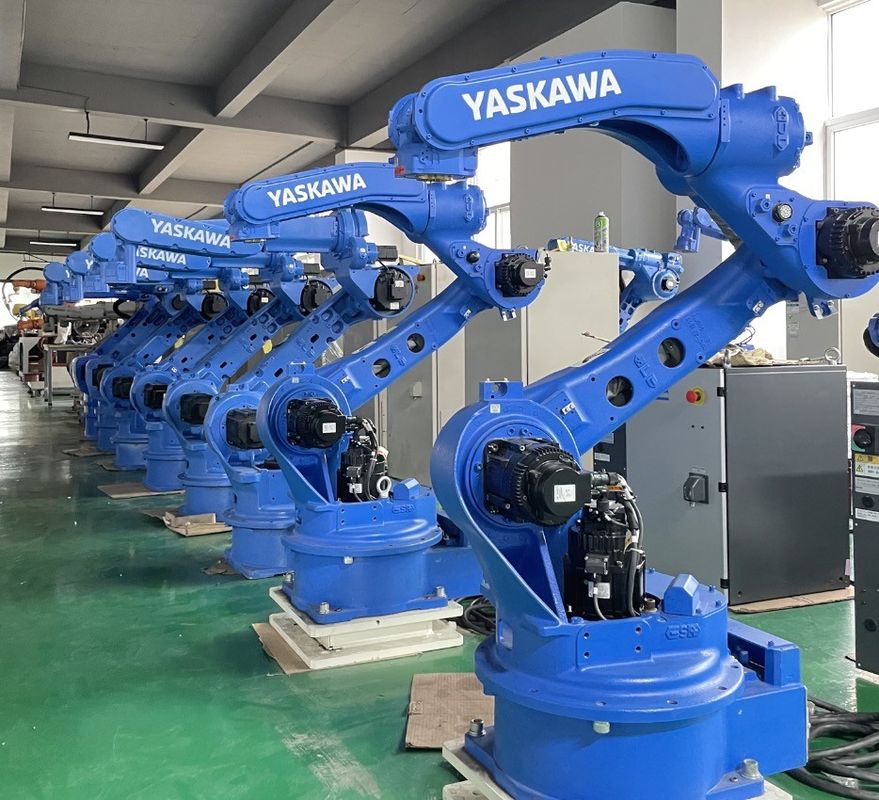

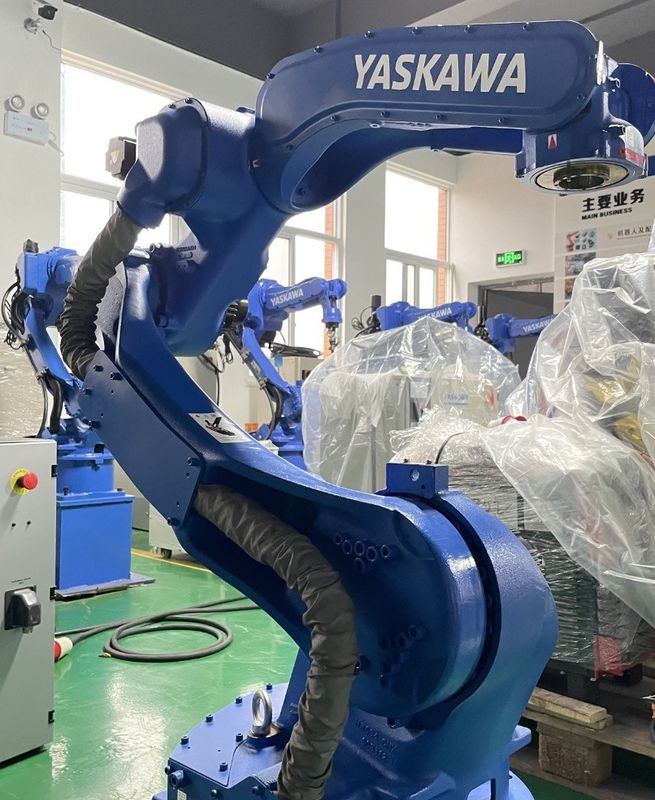

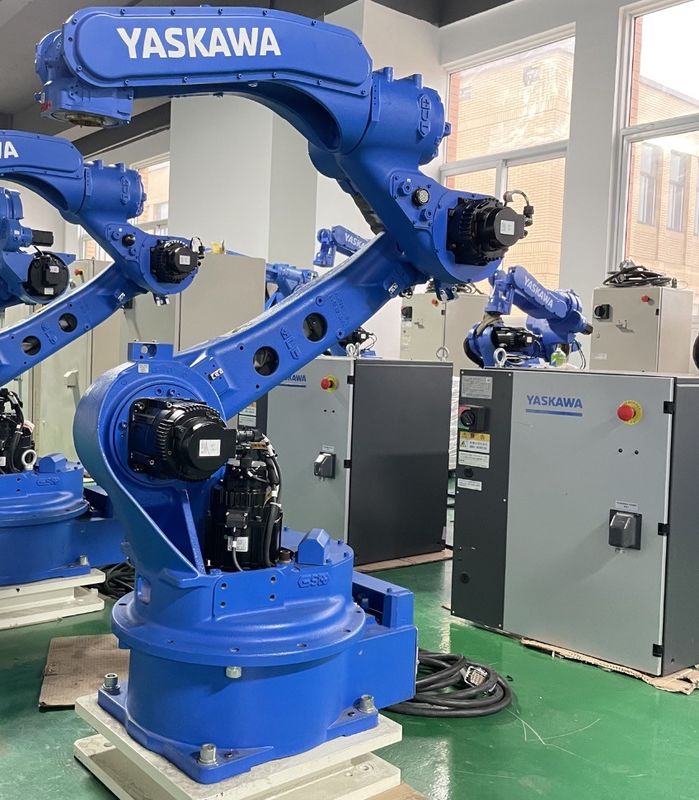

Industrial Used Robotic Arm 6 Axis Yasukawa MH24 Laser Welding Robot Arm

Industrial Used Robotic Arm 6 Axis Yasukawa MH24 Laser Welding Robot Arm

multifunctional Used Robotic Arm

Yasukawa Used Robotic Arm

Laser Welding Robot Arm

Place of Origin:

Japan

Brand Name:

Yaskawa

Certification:

CE

Model Number:

MH24

Chat Now
Chat Now
Industrial Used Robotic Arm 6 Axis Yasukawa MH24 Laser Welding Robot Arm
Industrial Used Robotic Arm 6 Axis Yasukawa MH24 Laser Welding Robot Arm Industrial Used Robotic Arm 6 Axis Yasukawa MH24 Laser Welding Robot Arm Industrial Used Robotic Arm 6 Axis Yasukawa MH24 Laser Welding Robot Arm
Product Details
Brand Name:
Yaskawa MH24
Payload:
24kg
Axes:
6
Controller:
DX200
Reach:
1730mm
Repeatability:
<±0.06mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Delivery Time
3-7 work days
Payment Terms
L/C, T/T, D/A, D/P
RELATED PRODUCTS
Good price KUKA KR 210 R3100 Ultra C4 Press tending , Palletising , Painting Polishing ,Machining Waterjet cutting 210 Kg 3100 mm online Video

KUKA KR 210 R3100 Ultra C4 Press tending , Palletising , Painting Polishing ,Machining Waterjet cutting 210 Kg 3100 mm

Get Best Price
Good price Yaskawa MA1900 Used Robotic Arm 6 Axis Robot Robotic Arm For Welding online Video

Yaskawa MA1900 Used Robotic Arm 6 Axis Robot Robotic Arm For Welding

Get Best Price
Good price Yaskawa Spraying Used Robotic Arm EPX2900 Working Range 2900mm Payload 20kg online Video

Yaskawa Spraying Used Robotic Arm EPX2900 Working Range 2900mm Payload 20kg

Get Best Price
Good price Used Yaskawa EPX2900 Fully Automatic 6 Axis Spraying Robot Arm With Explosion Proof Device online Video

Used Yaskawa EPX2900 Fully Automatic 6 Axis Spraying Robot Arm With Explosion Proof Device

Get Best Price
Contact Us
8618123897892
dai155129291@gmail.com
Chat Now
Product Description

Industrial Robotic Arm 6 Axis Yasukawa MH24 For Laser Welding Robot Arm



Yaskawa MH24 Main applications: cutting, handling, palletizing, assembly/packaging



MH24 installation method floor type, wall type, upside down type



MH24  is a medium-duty industrial robot with low power output for all axes. It does not need to set up safety fences. It has position monitoring with safety function modules, life diagnosis functions for reducers and hardware maintenance functions. The structure is simple. Equipped with DX200 control cabinet, its safety is improved and its functions are also enriched.


MH24 is a multifunctional industrial robot with high production efficiency. It uses a hollow upper arm, so the cables can be placed in the arm, and the loadable weight of the upper arm is 12kg.



MH24 can easily automate machine maintenance applications and is also capable of arc and laser welding. The maintenance and inspection of MH24 is also very detailed. The robot body should be dedusted and cleaned according to the working environment on site. Its body and 6-axis tool end should be checked to see if they are fixed. Check whether there is oil leakage or oil leakage when the gear box of the body and the wrist are in a sealed state. Check the use status and wear and tear of the robot's signal cables, body cables, power cables, and user cables. And its motor structure is a left-right rotation structure, which can easily adjust the placement direction without replacing the reed switch and air duct. And the rotating mechanism of the clamping device can be rotated to 180°.





Conditio Used
Payload 24kg
Color Blue
Main applications cutting, handling, palletizing, assembly/packaging
Working Range 1730mm
Weight 268kg
