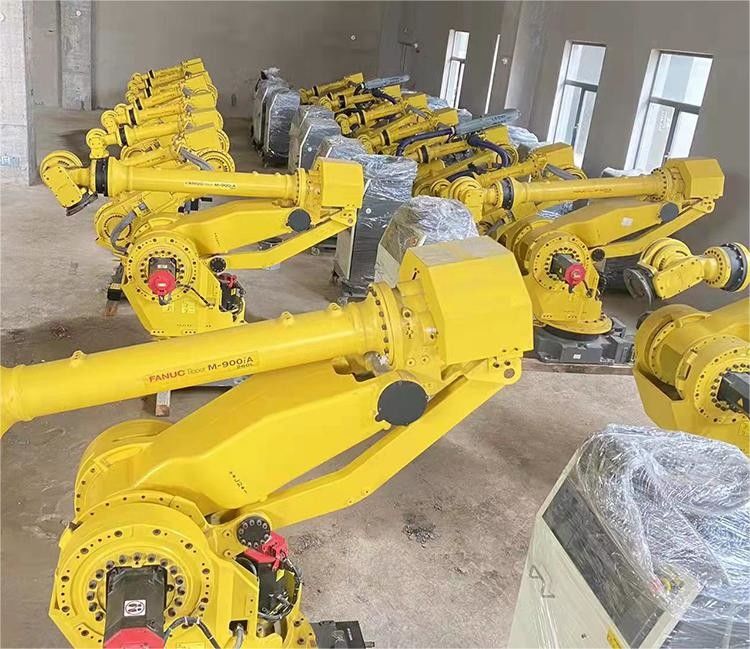

Second Hand Spot Welding Robot FANUC M-900iA/260L Payload 260KG Working Range 3100mm
FANUC Intelligent Robot M-900IA/260L Features:
FANUC ROBOT M-900IA is a robot that can carry heavy objects, which can carry objects weighing 260KG ~ 600KG.
1. Three types of robots can be selected according to the application.
-FANUC ROBOT M-900IA/260L
FANUC ROBOT M-900IA is a long arm robot with a handling weight of 260KG and an effective range of 3.1M. This robot is ideal for handling bulky workpieces over long distances.
2. The mechanical wrist of FANUC ROBOT M-900IA has an environmental resistance equivalent to IP67 (dust-proof and drip-proof), so it can be used with confidence even in harsh environments.
3. FANUC ROBOT M-900IA uses the R-J3IC control device for control, and can use the new robot control function.
R-30iA control cabinet function
The R-30iA controller takes less than 1 minute to start up (not even basic software). In case of power failure:
The FANUC ROBOT M-900IA robot program restarts much faster than using any PC-based program (non-Windows operating system).
The FANUC ROBOT M-900IA recovery hot start function allows to restart safely and continue production after a power outage: no need to re-execute the entire movement.
FANUC ROBOT M-900IA unique recovery tolerance check: In case of any program interruption, the robot automatically memorizes its position before failure. As the program continues, it checks whether the robot has moved outside a preset tolerance. This avoids unexpected movements and collisions.
Increase runtime (robot availability)
The R-30iA controller has a USB interface on the front panel and a PCMCIA interface in the control cabinet
2 serial interface connections (RS232C, RS422) available
printer connection
data transfer (option)
Sensor interface (option)
CRT keyboard (optional)
User-specific data transfer using KAREL options
| Model |
FANUC M-900iA/260L |
| Number of axes |
6 axes |
| Mechanism |
articulated robot |
| Controller |
R-30iA |
| Installation method |
Floor |
| Working range |
3100mm |
| Payload |
260kg |
| Repeatability |
±0.3mm |
| Weight |
2800kg |
| Drive mode |
use AC servo motor for electrical servo drive |
| Application fields |
casting, stamping, spot welding, welding, handling, palletizing, loading and unloading, forging, etc. |
| Condition |
Used Fanuc Robot |
